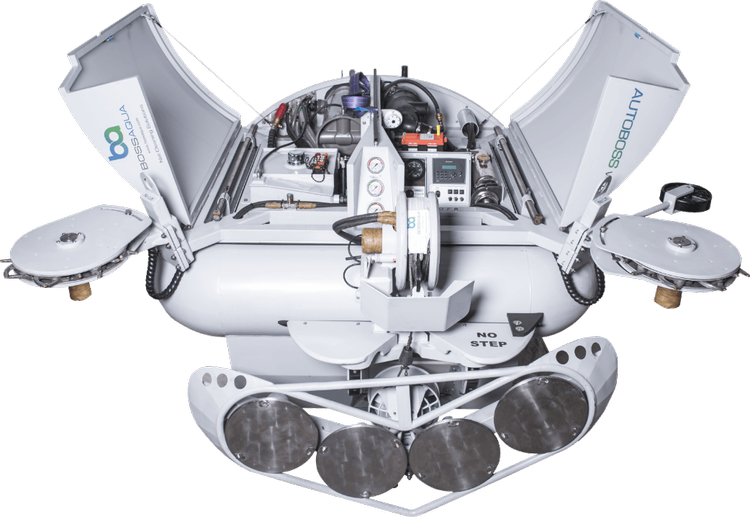

The AutoBoss™ V3.1B is a reliable, automated, and low-cost cleaning machine for fish farming grower nets.
About the AutoBoss™ V3.1B
The AutoBoss™ V3.1B takes a different approach to net washing with a focus on cleaning nets quickly and efficiently. AutoBoss™ V3.1B is a Marine programmable Robot allowing you to target the net that needs cleaning quickly and efficiently.
The AutoBoss™ V3.1B operates with minimal human intervention operating on its own PLC logic. Manufactured with quality design and components in New Zealand, the AutoBoss™ V3.1B delivers impressive results for its compact size.
System Components
The AutoBoss™ V3.1B includes system components that are carefully engineered to work together to produce high efficiency, reliability and performance.
Features include:
Semi-autonomous
Fully self-contained
Higher cleaning pressure
Remote control
High system efficiency
Fast deployment
4x disc wash head
Easy to operate
Highly reliable
Low carbon footprint
Quality equipment
Global backup
AutoBoss™ V3.1B Specifications
| Size | 2500L x 2000W x 1250h |
|---|---|
| Weight | Approx. 950kg dry |
| Speed | 1500m²/hr |
| Fuel Consumption | 10-12ltr/hr |
| Fuel Capacity | 45ltr |
| Wash Head | 4x disc |
| Cleaning Width | 1400mm |
| HP Pump | 3000psi / 70lpm |
| Umbilical | 30m standard |
Engineered for success
The AutoBoss™ V3.1B is quickly deployed and easy to operate resulting in minimal downtime between nets. The onboard PLC is set for the correct cleaning cycle according to the net dirtiness, eliminating unnecessary energy and time waste. A dependable and consistent clean is achieved with minimal operator influence.
100% of the high-pressure water is used for cleaning, other functions of the machine are driven by the hydraulic system. This combination allows the AutoBoss™ V3.1B to cover up to 1500m²/hr.
FAQs
-
The AutoBoss™ V3.1B is a robot and therefore requires a consistent environment in which to operate. A clear corridor is required around the inside perimeter of a tensioned net with no loose rope or obstacles.
-
A suitable vessel/platform capable of comfortably lifting 1000kg is required to deploy the AutoBoss™ V3.1B into a pen. A clean fuel supply and trained operator are all that are required to operate the AutoBoss™ V3.1B.
-
Reliability is engineered into the AutoBoss™ V3.1B by clever design and quality components. Partnered with a trained operator the AutoBoss™ V3.1B will exhibit steadfast performance and reliability.
-
The AutoBoss™ V3.1B is easy to operate and service. Staff training will be provided to both operator and service staff. BossAqua™ will provide a factory training package to suit your requirements.
-
BossAqua™ possesses a network of global distributors and agents. With their proficient technical support and strategically located spare part supplies, BossAqua™ can promptly and effectively address any support needs, resulting in minimal downtime for your net cleaning operations.
-
Speed: Fast deployment, Fast retrieval, consistent and predictable performance. Energy per m² - AutoBoss™ V3.1B is in a league of its own!
Economy: Low fuel consumption, High 'up time', low cost per m² of net cleaned, several machines can be supported by one vessel.
Reliability: Minimal maintenance downtime and consistent result.
Flexibility: Targeted cleaning, easy to deploy/retrieve, several pens can be cleaned simultaneously.
Autonomy: Launching and retrieval are the only tasks requiring a support vessel, leaving the vessel free for other activities.
-
The AutoBoss™ V3.1B is the easiest to operate net cleaner available, the machine does all the work. No need for highly skilled ROV operators.
